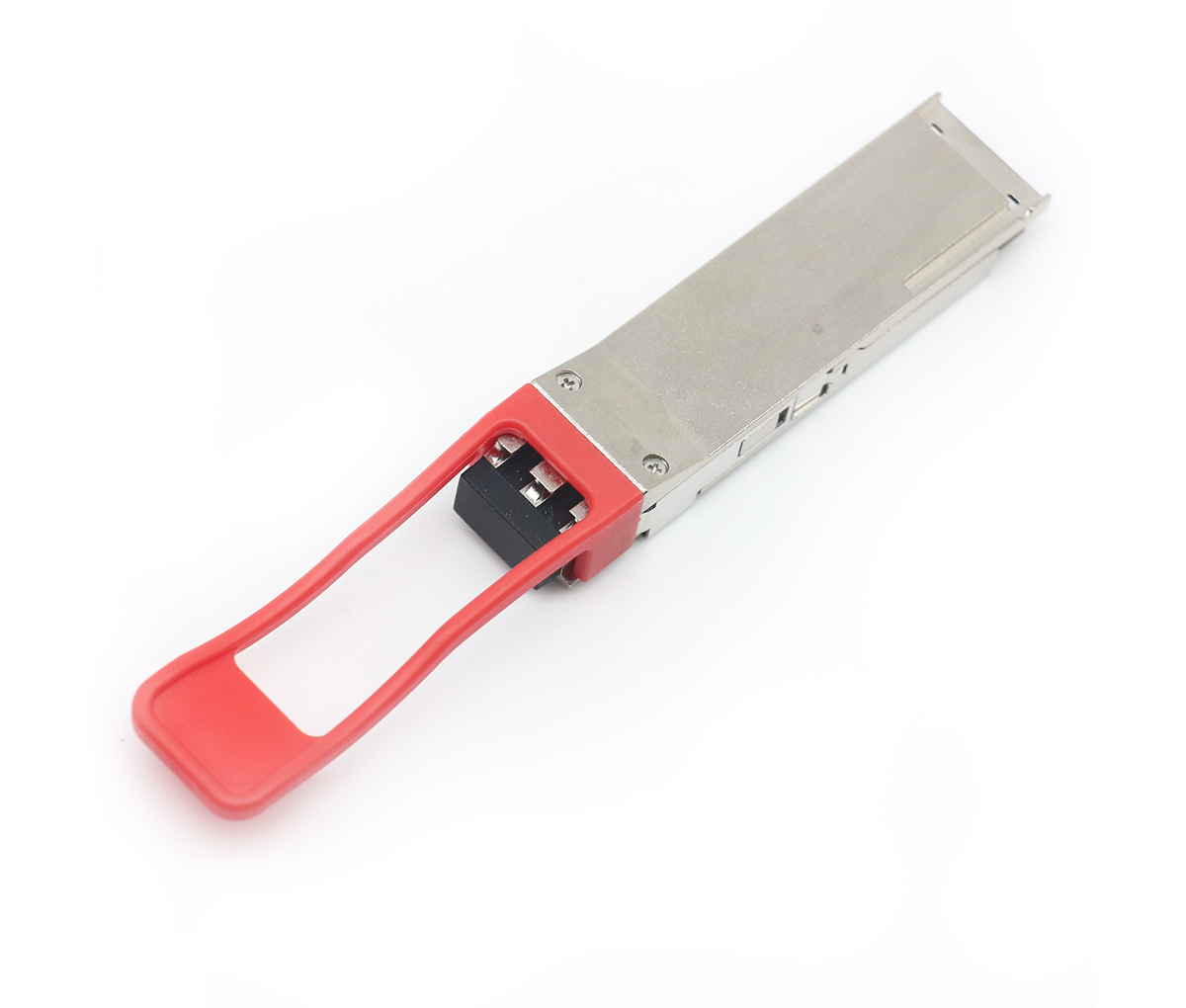

RealSea’s QSFP-40G-ER4 optical transceivers are based on Ethernet IEEE 802.3ba standard and SFF 8436 standard. The QSFP+ transceiver converts 4 inputs channels of 10Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data. The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331 nm as members of the CWDM wavelength grid defined in ITU-T G694.2.
4 CWDM Lanes MUX/DEMUX design
Up to 11.2Gbps data rate per wavelength
Duplex LC connector
Built-in digital diagnostic functions
Up to 40km on SMF
Maximum 3.5W operation power
Operating temperature range: 0◦C to 70◦C
General Specifications
Parameter | Symbol | Min | Typ | Max | Unit |
Data Rate | DR | 40 | Gb/s | ||
Bit Error Rate | BER | 10−12 | |||
Operating Temperature | Tc | 0 | 70 | ◦C | |
Storage Temperature | TSTO | -40 | 85 | ◦C | |
Input Voltage | Vcc | 3.14 | 3.30 | 3.46 | V |
Maximum Voltage | VMAX | -0.5 | 4 | V |
Product attributes | |||
Brand | Realsea Technology | RX Sensitivity : | < -19dBm |
Part Number | QSFP-40G-ER4 | Power dissipation : | ≤3.5w |
Data Rate | 40 Gbps | DDM/DOM : | Supported |
Connector Type | QSFP+ | EMC : | Supported |
Wavelength : | CWDM | Commercial Temperature : | 0 to 70°C (32 to 158°F) |
Transmission Distance : | 10KM | MTBF : | 1,000,000 Hours |
Connector : | LC | Receiver Overload : | -4.5dBm |
TX output Power : | 0 ~ 5dBm | Extinction Ratio : | >5.5dB |
Transmitter Type : | EML | Warranty : | 3 year |
RX Type : | PIN |
