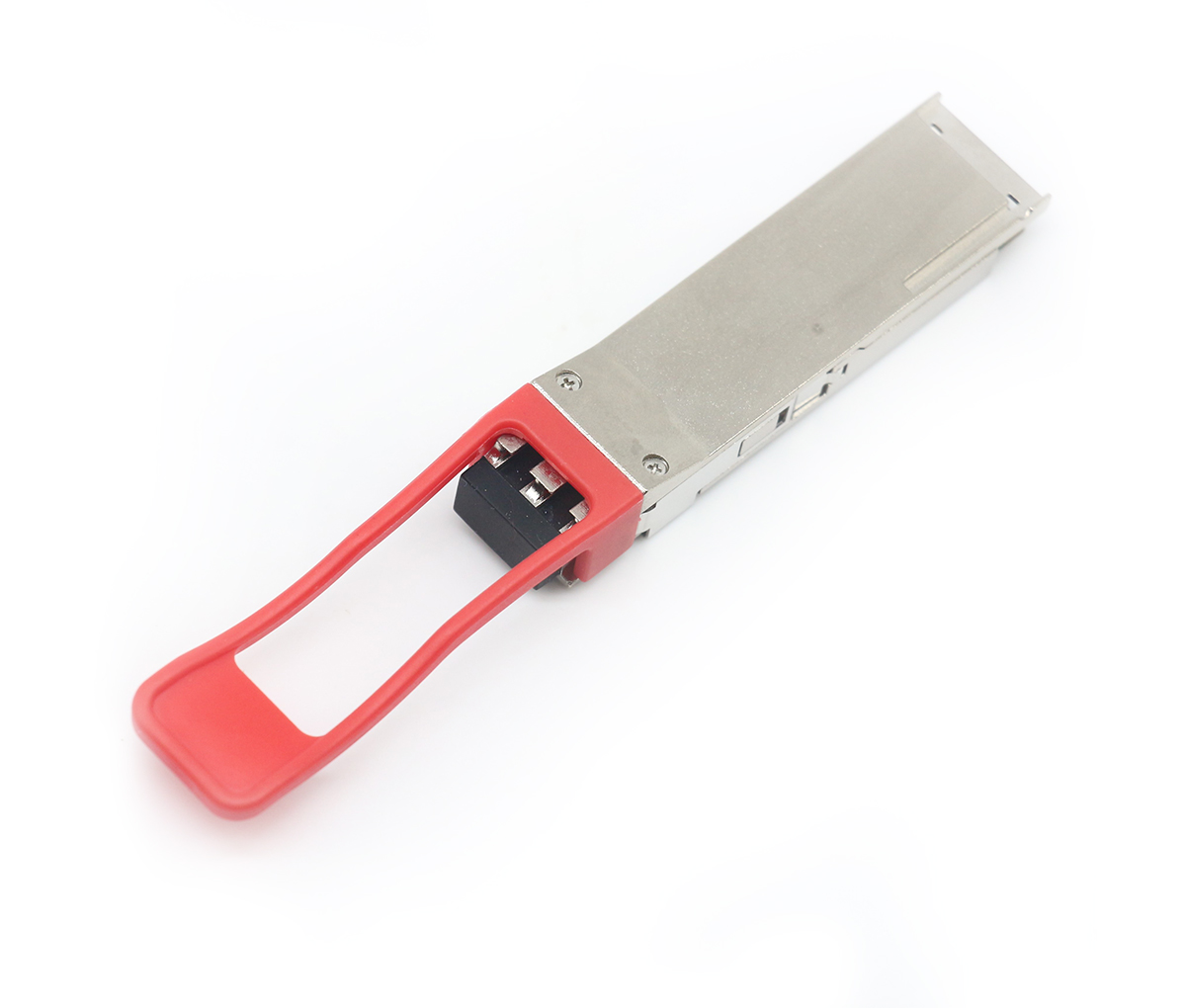

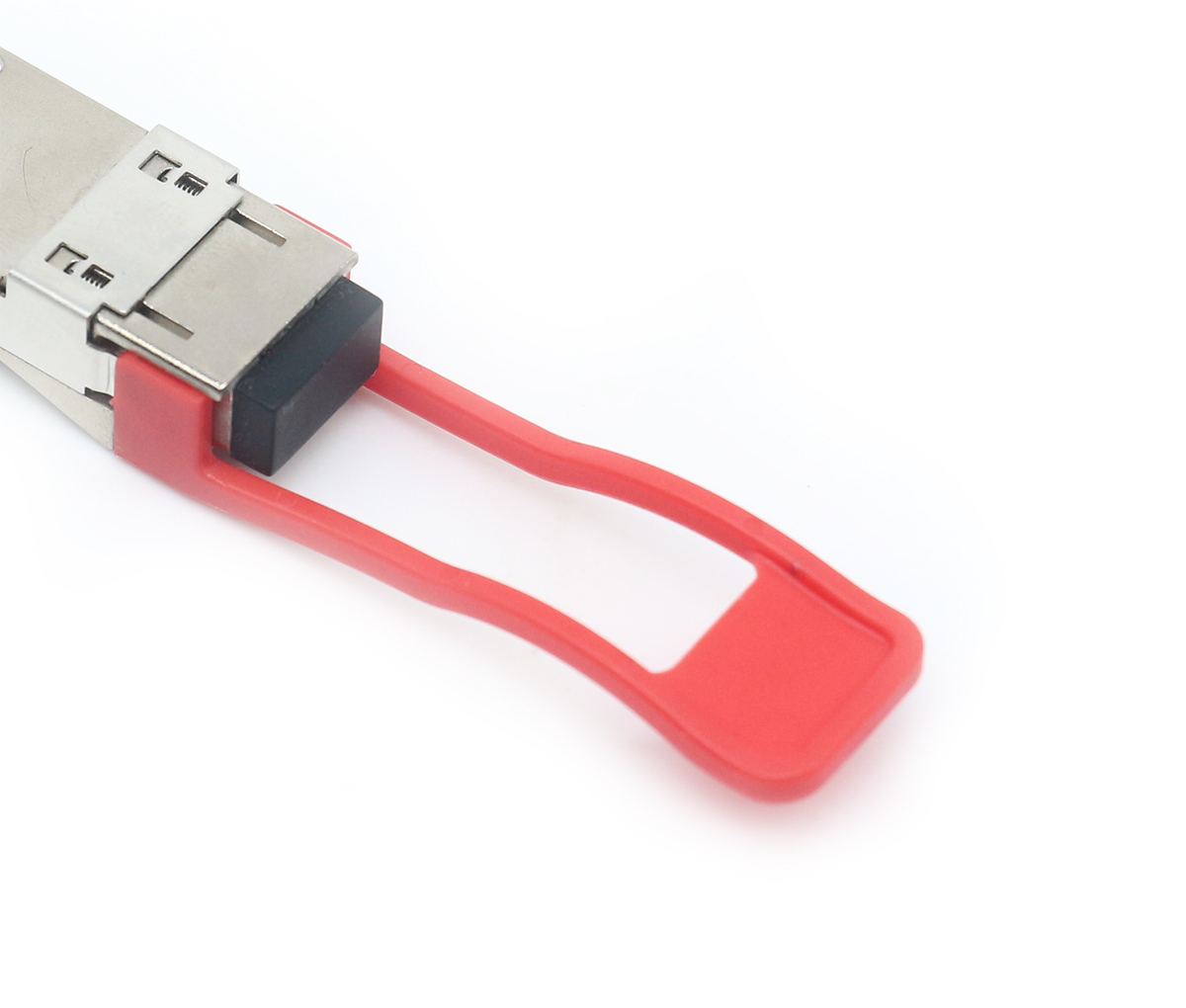

RealSea’s 100G QSFP28 ER4 Lite optical Transceiver integrates receiver and transmitter path on one module. In the transmit side, four lanes of serial data streams are recovered, retimed, and passed to four laser drivers. The laser drivers control 4-EML with center wavelength of 1296 nm, 1300nm, 1305nm and 1309 nm.The optical signals are multiplexed to a single–mode fiber through an industry standard LC connector. In the receive side, the four lanes of optical data streams are optically de-multiplexed by the integrated optical demultiplxer. Each data stream is recovered by a APD and trans-impedance amplifier, retimed. This module features a hot-pluggable electrical interface, low power consumption and MDIO management interface. The product compliant with QSFP28 Multi-Source Agreement (MSA) and IEEE 802.3bm.
Support line rates from 103.125 Gbps to 111.81
Gbps
High speed I/O electrical interface (CAUI-4)
compliant with IEEE 802.3bm
Maximum power consumption 5.0W
LAN WDM EML laser and APD Receiver
40km(with host FEC),30km(without host FEC)
• QSFP28 MSA package with duplex LC
connector
Two Wire Serial Interface with Digital Diagnostic Monitoring
Single 3.3V Supply Voltage
Operating temperature range: 0◦C to 70◦C
Compliant with QSFP28 Standard:SFF-8665 Revision 1.9, SFF-8636 Revision 2.6
Compliant with 100G 4WDM-40 MSA technicalspecification rev 1.0
Compliant with IEEE 802.3bm
Compliant with RoHS-6
General Specifications
Parameter | Symbol | Min | Typ | Max | Unit |
Data Rate | DR | 25.78 | 11.3 | Gb/s | |
Bit Error Rate | BER | 10−12 | |||
Operating Temperature | Tc | 0 | 70 | ◦C | |
Storage Temperature | TSTO | -40 | 85 | ◦C | |
Surge Current | Icc | 180 | 295 | mA | |
Input Voltage | Vcc | 3.14 | 3.30 | 3.46 | V |
Maximum Voltage | VMAX | -0.5 | 4 | V |
Product attributes | |||
Brand | Realsea Technology | RX Sensitivity : | < -18.65dBm |
Part Number | QSFP28-100G-ER4 | Power dissipation : | <4.5W |
Data Rate | 100 Gbps | DDM/DOM : | Supported |
Connector Type | QSFP28 | EMC : | Supported |
Wavelength : | LWDM4 | Commercial Temperature : | 0 to 70°C (32 to 158°F) |
Transmission Distance : | 40KM | MTBF : | 1,000,000 Hours |
Connector : | LC Duplex | Receiver Overload : | -3.3dBm |
TX output Power : | -2.9 ~4. 5dBm | Extinction Ratio : | >4dB |
Transmitter Type : | 4EML | Warranty : | 3 year |
RX Type : | PIN |
