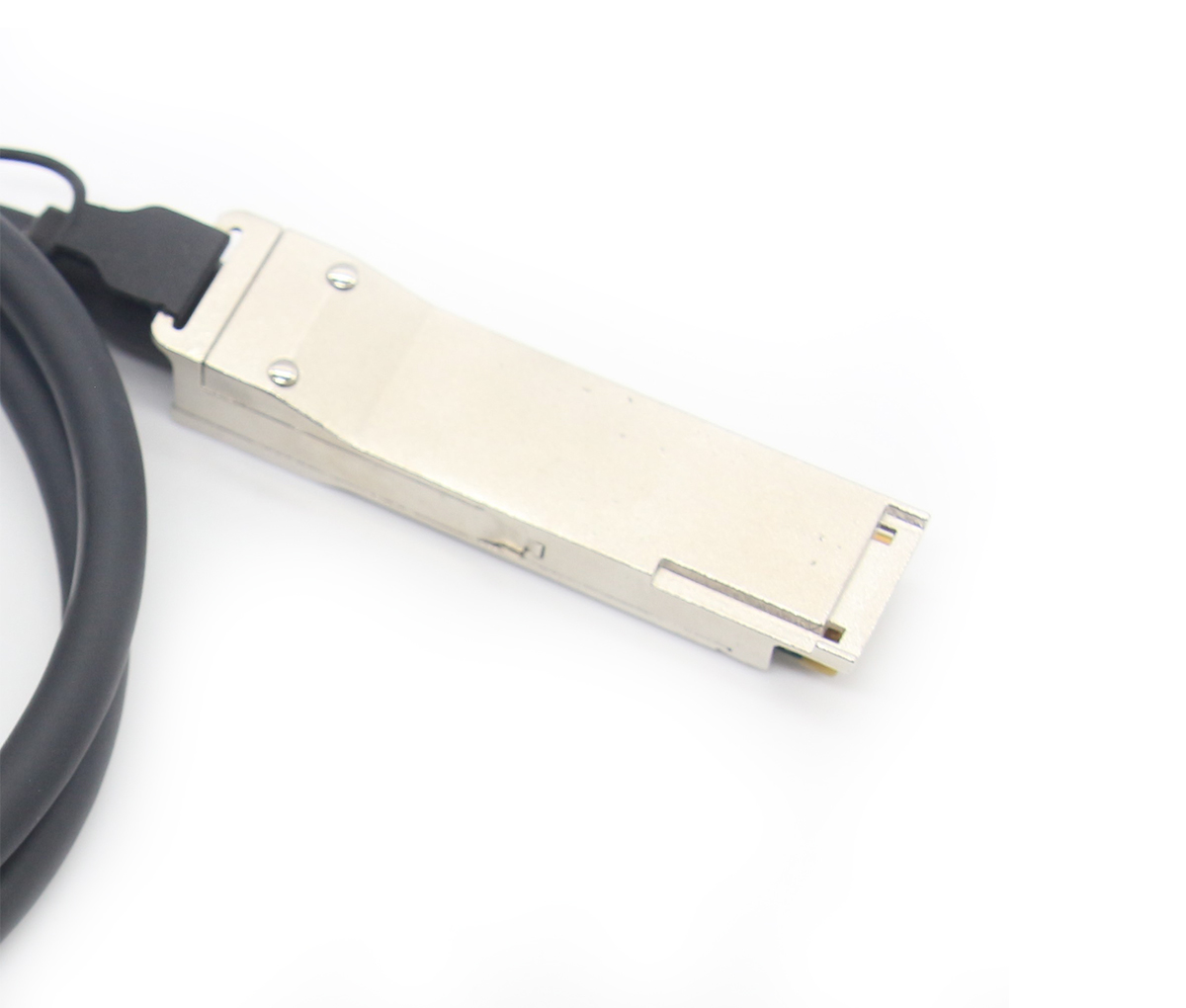

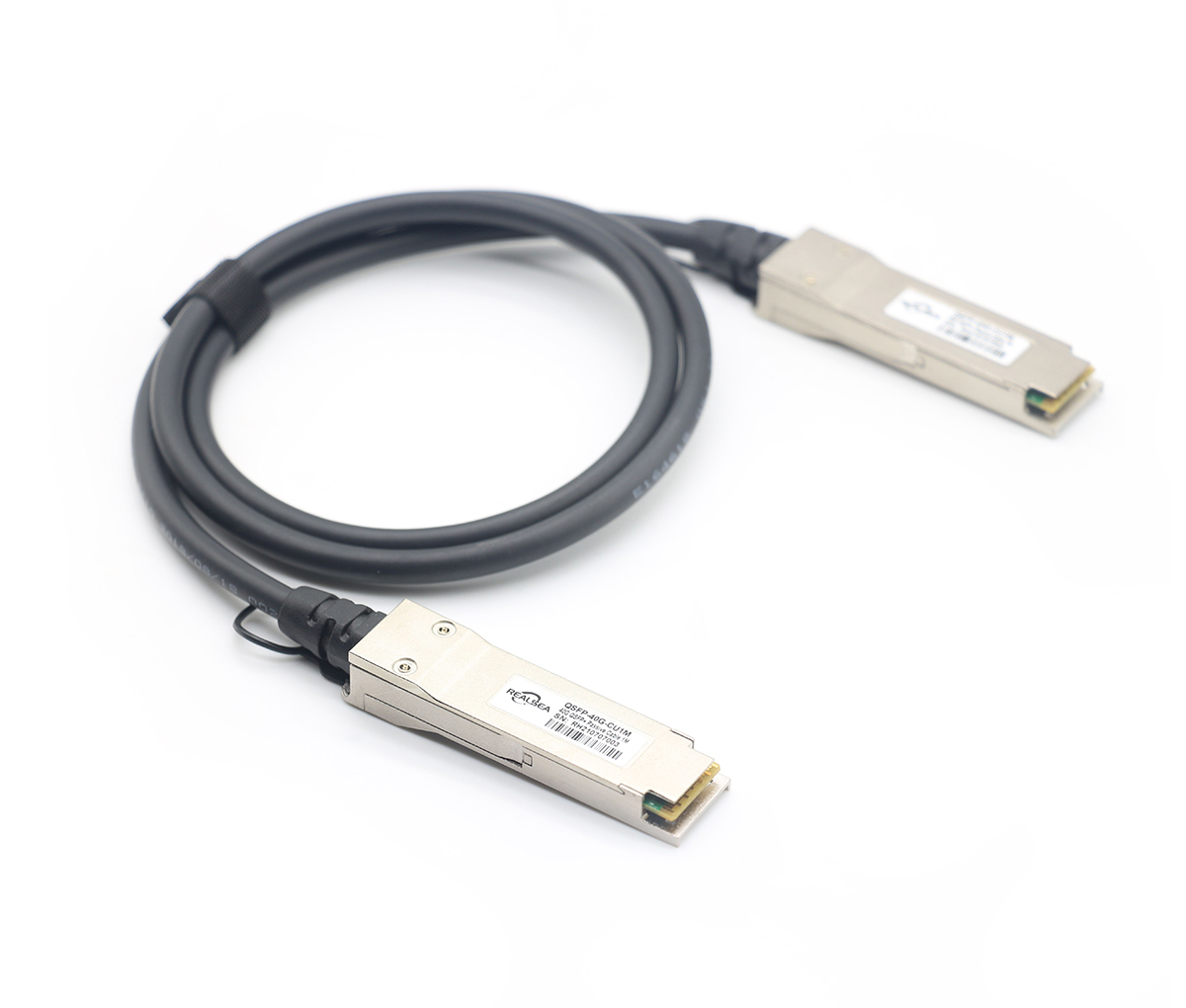

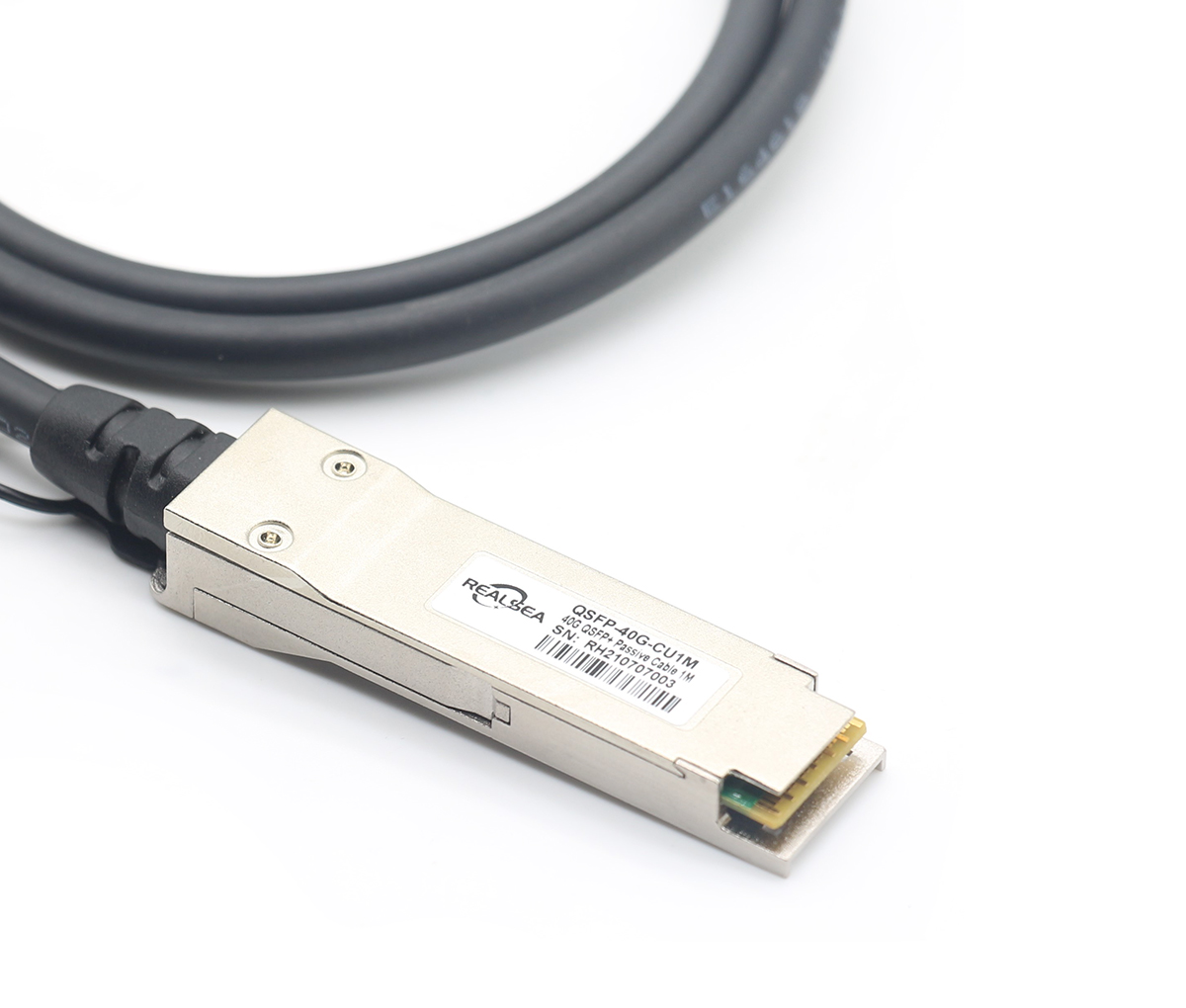

40G DAC Passive Copper Cable

RealSea’s 40G QSFP+ (Quad Small Form-factor Pluggable Plus) active direct-attach copper cables are suitable for very short distances and offer a highly cost-effective way to establish a 40-Gigabit link between QSFP+ ports. QSFP+ are designed for a high density cabling interconnect system capable of delivering an aggregate data bandwidth of 40Gbps. This interconnect system is fully compliant with QSFP+ MSA. The QSFP+ cables support the bandwidth transmission requirements defined by IEEE802.3ba (40Gbps).

Online inquiry Download

Share:

APPLICATION

Data center

Server

Switch

40Gigabit Ethernet

Features

STANDARDS COMPLIANCE

PERFORMANCE

General Specifications

Parameter

       Symbol

       Min

         Typ

        Max

     Unit

Data Rate

          DR


         40


     Gb/s

Bit Error Rate

         BER



       1012


Operating Temperature

           TC

           0


          70

     ◦C

Storage Temperature

          TSTO

     -40


          85

     ◦C

Input Voltage

           VCC

    3.14

         3.30

         3.46

            V


COMPATIBLE BRANDS

Product attributes

Product attributes

Brand

Realsea Technology

Part Number

QSFP-40G-AC1M

Data Rate

40Gbps

Connector Type

QSFP+ to QSFP+

Wire AWG

24AWG

Cable Length

1m (3.28ft)

Cable Type

Passive Twinax

Minimum Bend Radius

23mm

Power Consumption

<0.5W

Jacket Material

PVC (OFNR)

Commercial Temperature

0 to 70°C (32 to 158°F)

Warranty

3 year
