40G 1 Point 4 DAC

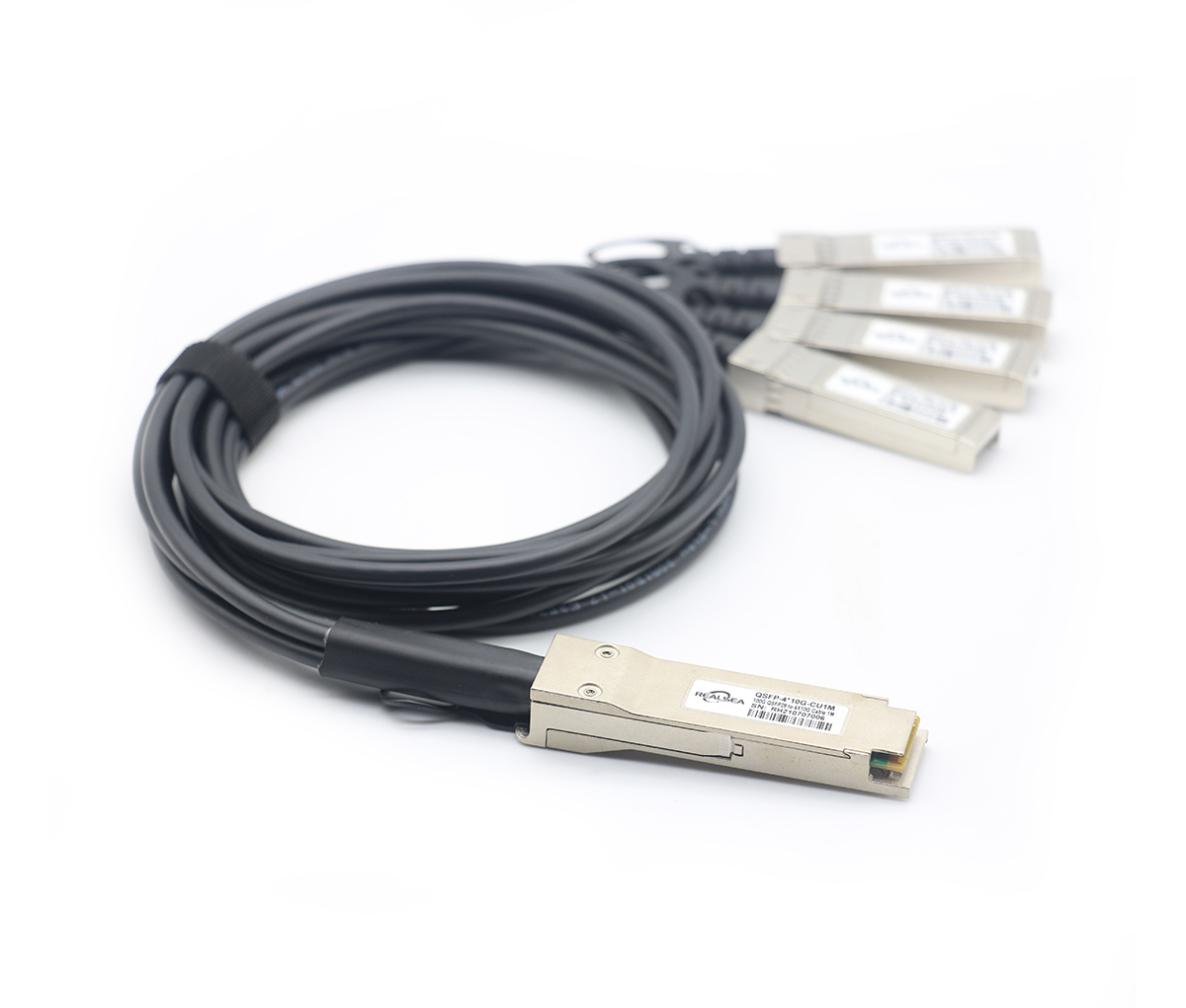

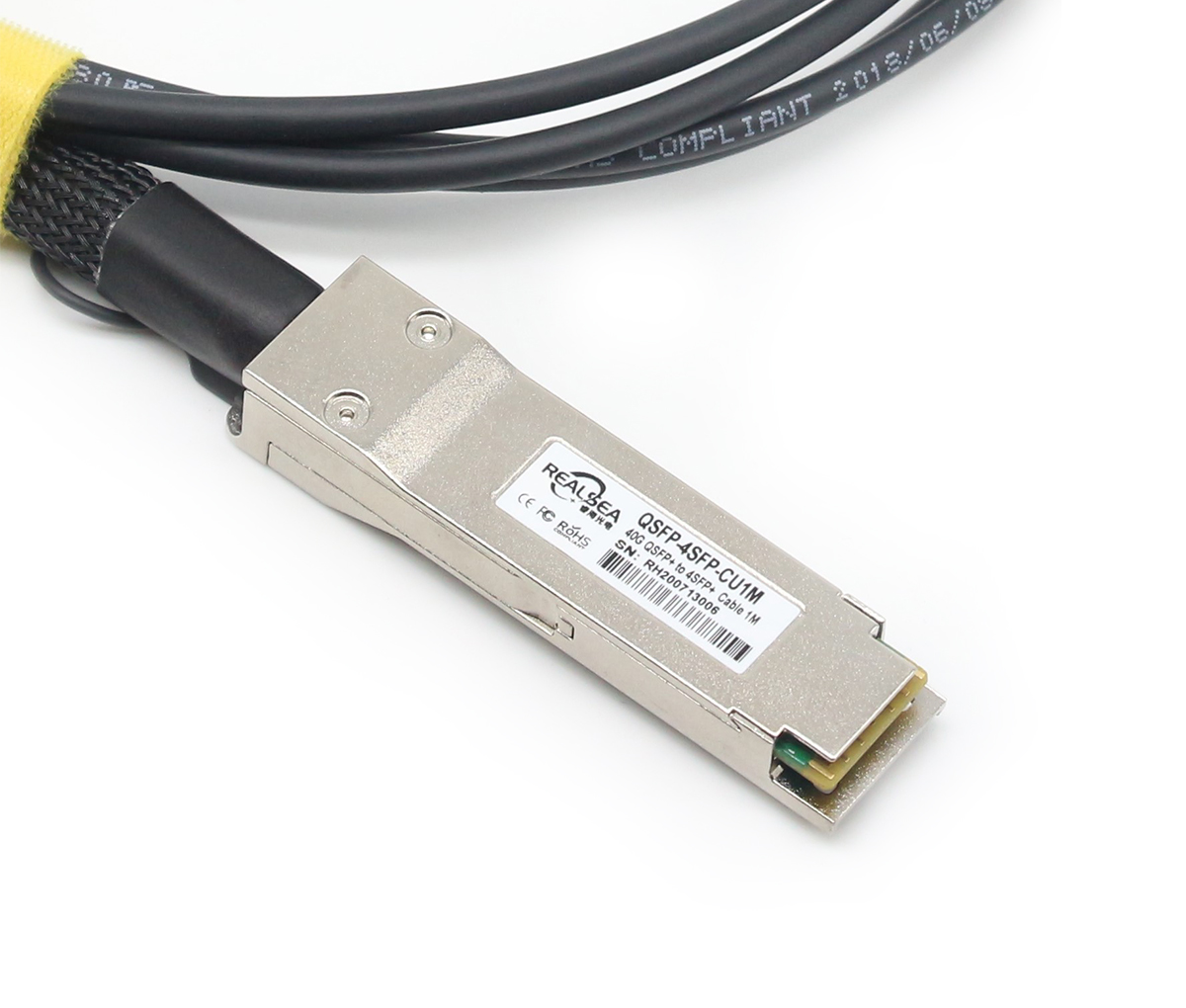

RealSea’s 40G QSFP+ to 4SFP+ 10G passive cable is the preferred solution for 40G speed short-range data transmission with low power consumption, good stability and high cost performance.The QSFP10 to 4SFP10 passive cable is used for data transfer between a 40G QSFP10 port and four 10G SFP10 ports, providing a low-cost solution for data transfer services within and between data center racks.This product complies with the SFF-8436, QSFP+ MSA and IEEE 802.3ae standards.

Online inquiry Download

Share:

APPLICATION

Data center

Server

Switch

40G Fiber Channel

Features

STANDARDS COMPLIANCE

PERFORMANCE

General Specifications

Parameter

       Symbol

       Min

         Typ

        Max

     Unit

Data Rate

          DR


         40


     Gb/s

Bit Error Rate

         BER



       1012


Operating Temperature

           TC

           0


          70

     ◦C

Storage Temperature

          TSTO

     -40


          85

     ◦C

Input Voltage

           VCC

    3.14

         3.30

         3.46

            V


COMPATIBLE BRANDS

Product attributes

Product attributes

Brand

Realsea Technology

Part Number

QSFP-4SFP10G-CU1M

Data Rate

40Gbps

Connector Type

QSFP+ to 4SFP+

Wire AWG

30AWG

Cable Length

1m (3.28ft)

Cable Type

Passive Twinax

Minimum Bend Radius

23mm

Power Consumption

<0.5W

Jacket Material

PVC (OFNR)

Commercial Temperature

0 to 70°C (32 to 158°F)

Warranty

3 year
